TransAtec 1170-1175-S01 Product Detail

click image to see detail

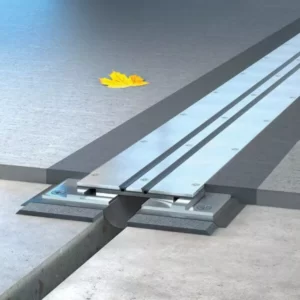

TransAtec 1170-1175-S01

Surface
Smooth transit
80-grit surface finish to stainless steel for improved slip resistance Americans with Disabilites Act (ADA) compliant
across the entire movement cycle

Movement
Good movement capacity
ASTM E-1399
Class I: Thermal
Class II: Wind

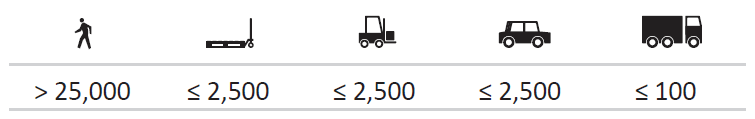

Traffic Frequency per day

Downloads

Description

Additional information

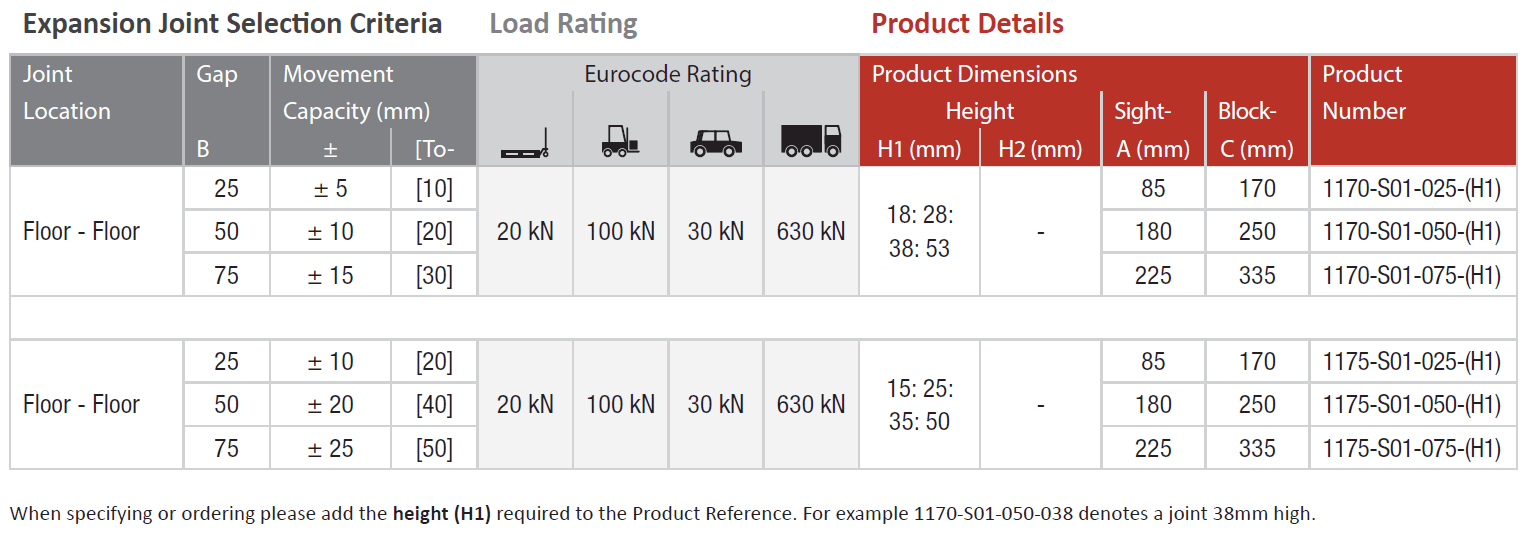

Gap width(s)

25, 50, 75 mm

Height(s)

18, 28, 38, 53 mm – TransAtec 1170
15, 25, 35, 50 mm – TransAtec 1175

Metal type(s)

Top Plates: Stainless Steel
Sub-structure: Galvanised Steel Plate

Colour(s)

Black

Fire barrier

120- 120 minutes

Waterproofing

Waterproofing membrane

Pre-assembly in factory
